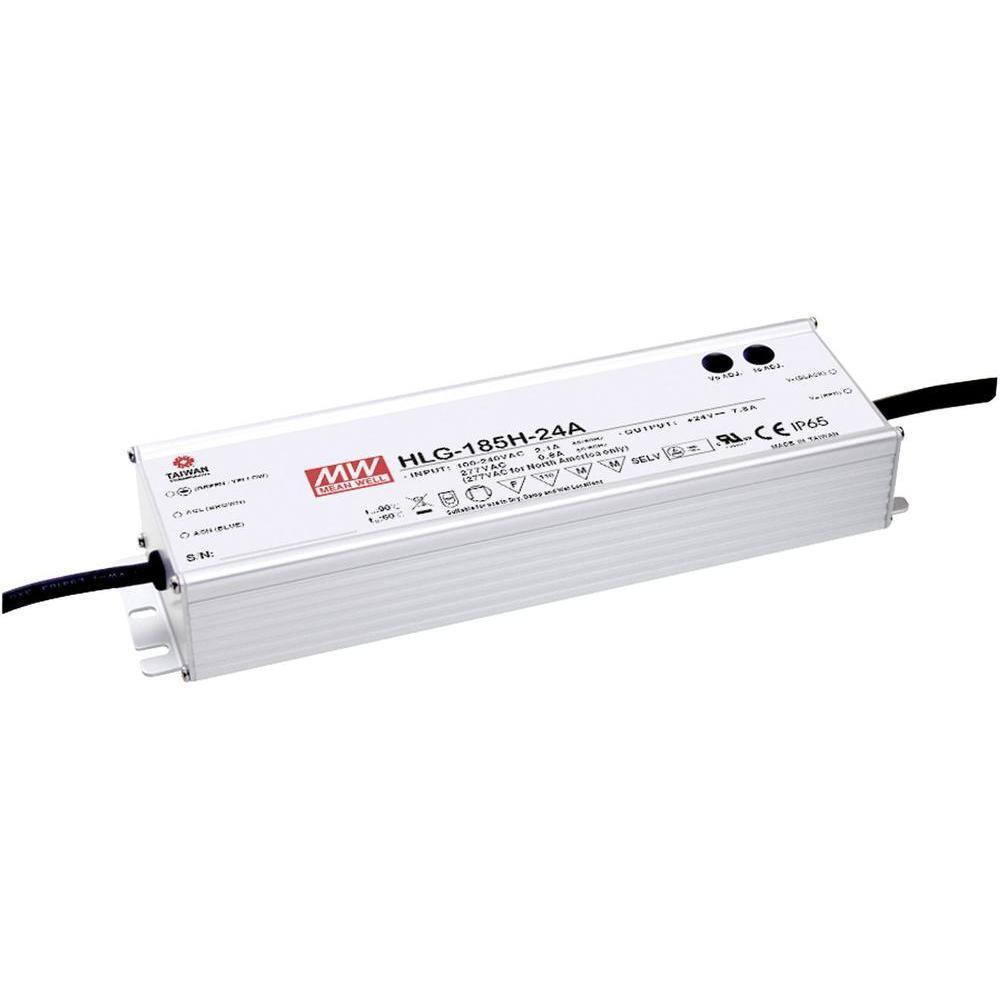

HLG 24V - 185W - 7.8A Power Supply

HLG-185-H24A
Power Supplies
$110.24
$110.24
HLG Family of Power Supplies. Our flagship LED drivers.
Extremely reliable and robust LED power supply designed for use with all LEDs including Constant Current and Constant Voltage products. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class I safety ensures short-circuit, overload, over-voltage, over-current, and over-temperature protection. IP65 rated for outdoor use. Safe, powerful, and reliable are the cornerstones of our HLG line of power supplies from Mean Well. Amazing 7 year warranty.
  • Output 120 - 600W
  • Class I
Ships in 1 - 2 Business Days

SPECIFICATIONS - 24VDC PRODUCT

Model : HLG-185H-24A
Current (A) : 7.8 A
Output Power (W) : 185 W
Agency Approvals : UL/CUL/CE/TUV/CB
Size (millimeters) : 228 X 68 X 38.8
Ripple & Noise (mV p-p) : 150mVp-p
Load Regulation () : ±0.5%
Line Regulation () : ±0.5%
Efficiency : 93.5%
Frequency Range : 47 ~ 63 Hz
Universal AC input : 90 ~ 305VAC 127 ~ 431VDC
Low leakage current : <0.75ma 277vac="" td="">
Protections: : short circuit, over voltage, overload, over current, over temp
AC Input : Bare Wire - Stripped & Tinned
Housing : Fully enclosed aluminum housing
Ingress Protection Rating : IP 65
Class : TYPE HL - Class I
Indicator : None
Voltage Adjustment Range : 22 ~ 27V
Output Connector Type : Bare Wire - Stripped & Tinned
Current Adjustment Range : 3.9 ~ 7.8A
Output Polarity : Refer to Specification Sheet
Input Connector : Bare Wire OR Hospital Grade Edison Plug (HBL8115V)
Product Type : AC to DC Power Supply
MFR Product Family : HLG
Operating Temperature : -40C to 90C
Power Supply Color : Silver
Wiring Color Codes Output : Refer to Label on PSU


  1. Specification Sheet - HLG-40H

  2.   Specification Sheet - HLG-60H
  3.  Specification Sheet - HLG-80H
  4.   Specification Sheet - HLG-100H
  5.   Specification Sheet - HLG-120H
  6.   Specification Sheet - HLG-150H
  7.   Specification Sheet - HLG-185H
  8.   Specification Sheet - HLG-240H
  9.   Specification Sheet - HLG-320H
  10.   Specification Sheet - HLG-480H
  11.   Specification Sheet - HLG-600H
