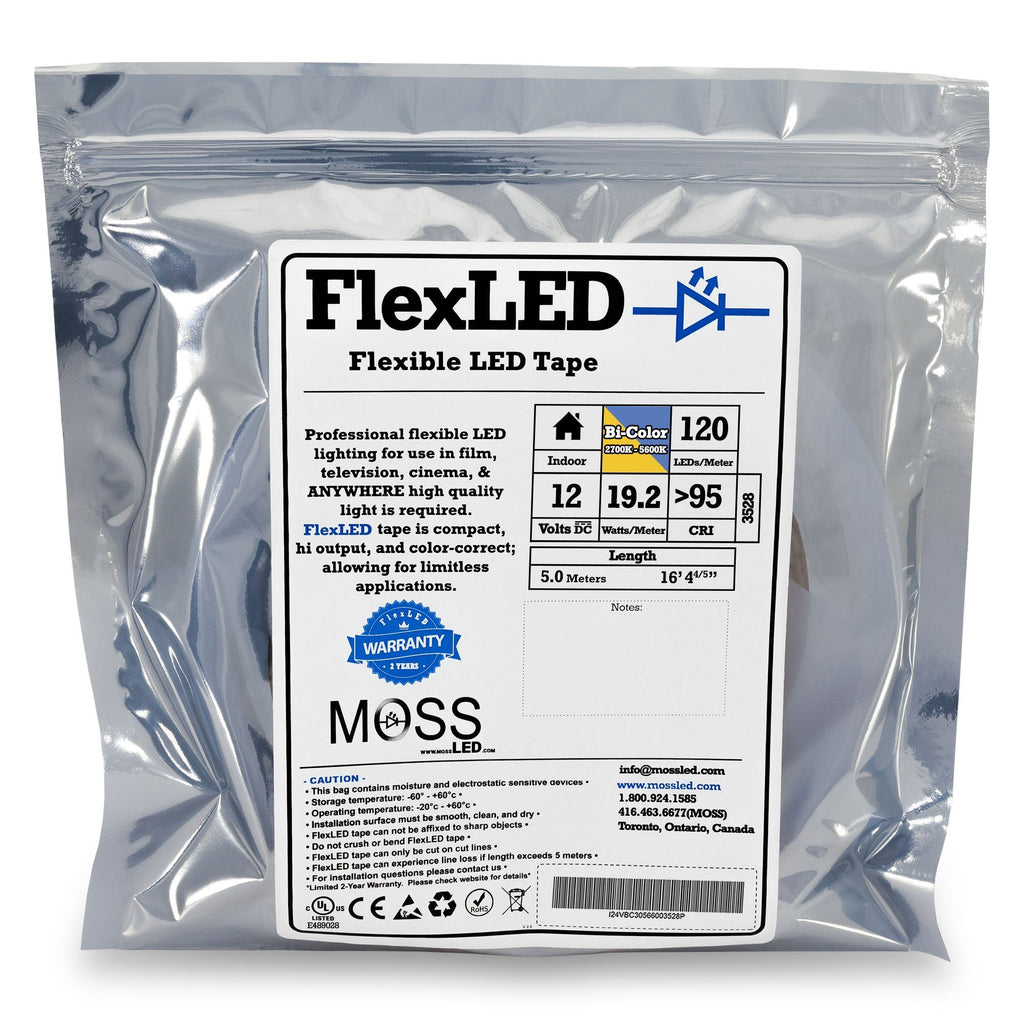

FlexLED Bi-Colour 2700K - 5600K 12V (CCT Adjustable) 120 LED/meter Indoor Bare end wires
Color Temperature adjustable high density FlexLED Tape
2700K - 5600K CRI <95
Only one pixel density bi-color 12V FlexLED is currently available. 120 LED/meter (12MM Width) standard installation grade includes a wide PCB surface area for optimal thermal dissipation. The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.
Suitable for residential, television, industrial, and commercial applications where high CRI white output is required.
Single bin LED chip ensures CCT accuracy within +/- 100k.
TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick. When used in damp or wet locations it is advised to use silicone caulking or glue to ensure proper adhesion.
Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available. Please contact us for specifics.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
Product Type | : | Bi-Color 120 |
Product Code | : | I12VBC27566003528 |
CRI | : | ≥95 |
Kelvin | : | 2700k - 5600k |
PCB Color | : | White |
Current, Rating | : | 1.59 A / meter |
Voltage | : | 12 VDC |
Wattage | : | 19.2 W / meter |
CC / CV | : | Constant Voltage |
IP Rating | : | IP43 |
Lumens @ Full | : | 1800 lm / meter combined |
Lumen / Watt | : | 94 |
Lifetime* | : | 50,000 hours |
Cutting Length | : | 10CM |
LED Quantity | : | 120 LED / meter |
Number of Contacts | : | 3 |
LED Type | : | 2835 |
Copper Quantity | : | 3 Oz. |
Temperature, Operating, Maximum | : | 70 C |
Temperature, Operating, Minimum | : | -40 C |
Agency Ratings | : | UL - E489028, CE, RoHS |
PCB Width | : | 12MM |
Maximum Recommended Length | : | 10 meters |
Viewing Angle | : | 120 degree |
Adhesion | : | TESA 4965 |
