FlexLED 96 RGB + White 24V 4100k Indoor Bare End Wires
I24VRGBW414805050
LED Tape
$213.52
Our Brightest, Highest Density FlexLED Tape (Sold in 5 meter lengths)
Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + Neutral White |
| Product Code | : | I24VRGBW414805050 |
| CRI | : | 95 |
| Kelvin | : | 4100k +/-100k |
| PCB Color | : | White |
| Current, Rating | : | 0.96 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 23 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 1500 lm / meter |
| Lumen / Watt | : | 65 |
| Lifetime* | : | 50,000 hours |

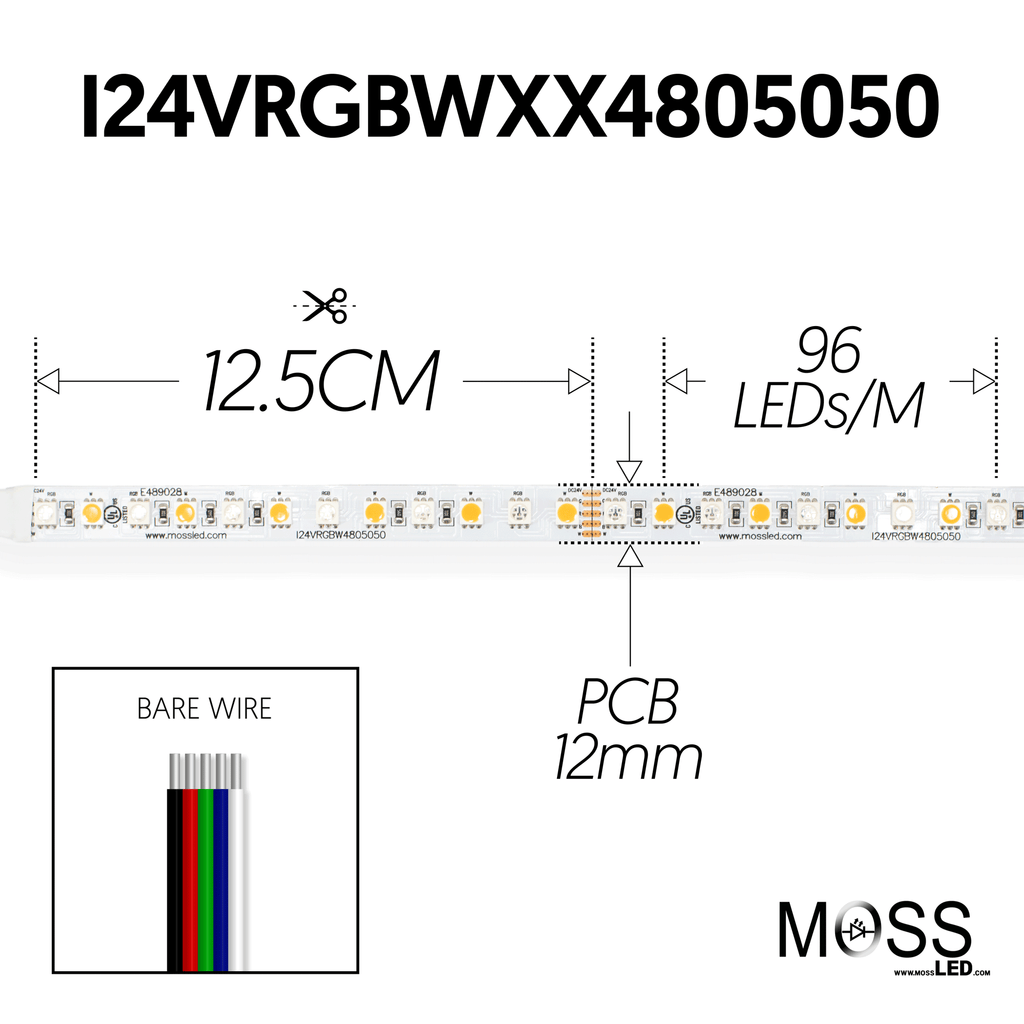

| Cutting Length | : | 12.5CM |
| LED Quantity | : | 96 LED / meter |
| Number of Contacts | : | 5 |
| LED Type | : | 5050 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM |
| Maximum Recommended Length | : | 7 meters |
| Viewing Angle | : | 120 |
| Adhesion | : | TESA 4965 |
| Wavelength A Red | : | 620 ~ 625nm |
| Wavelength B Green | : | 520 ~ 525nm |
| Wavelength C Blue | : | 465 ~ 470nm |
