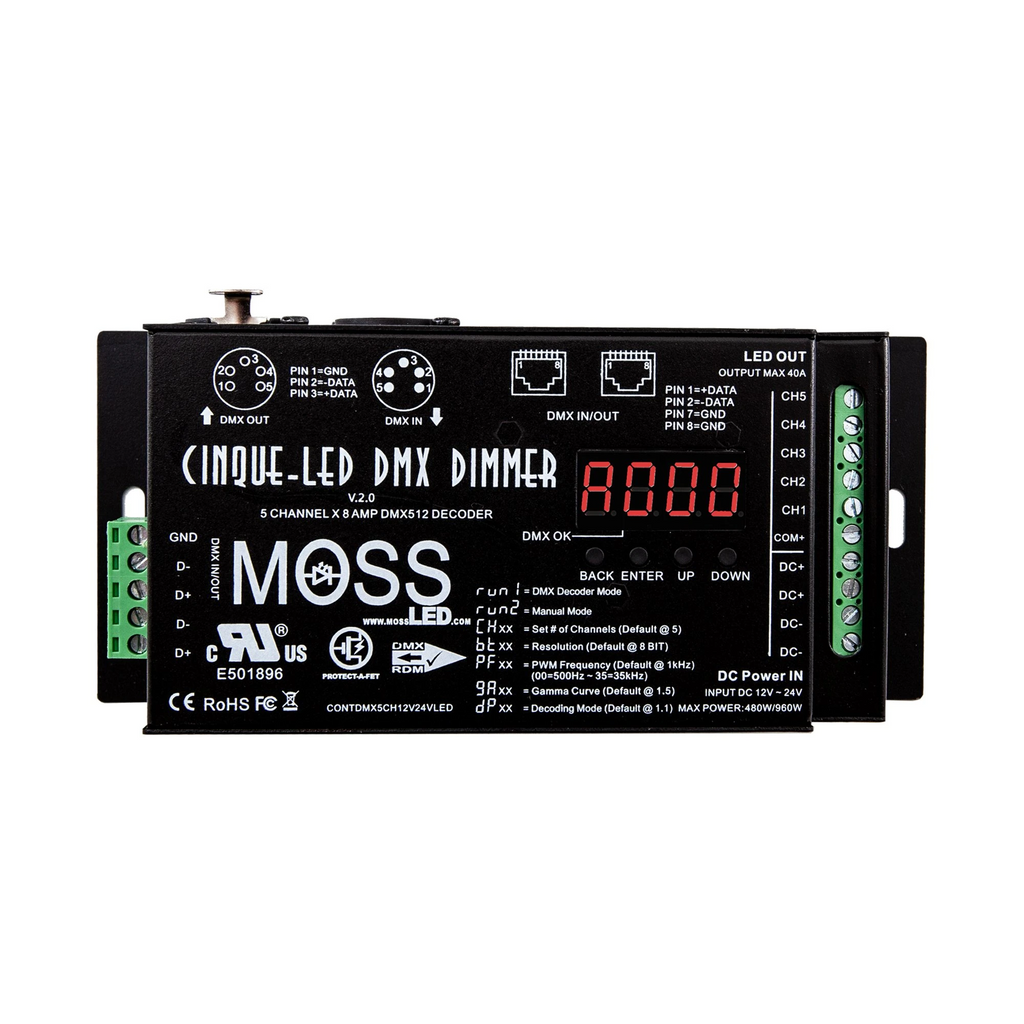

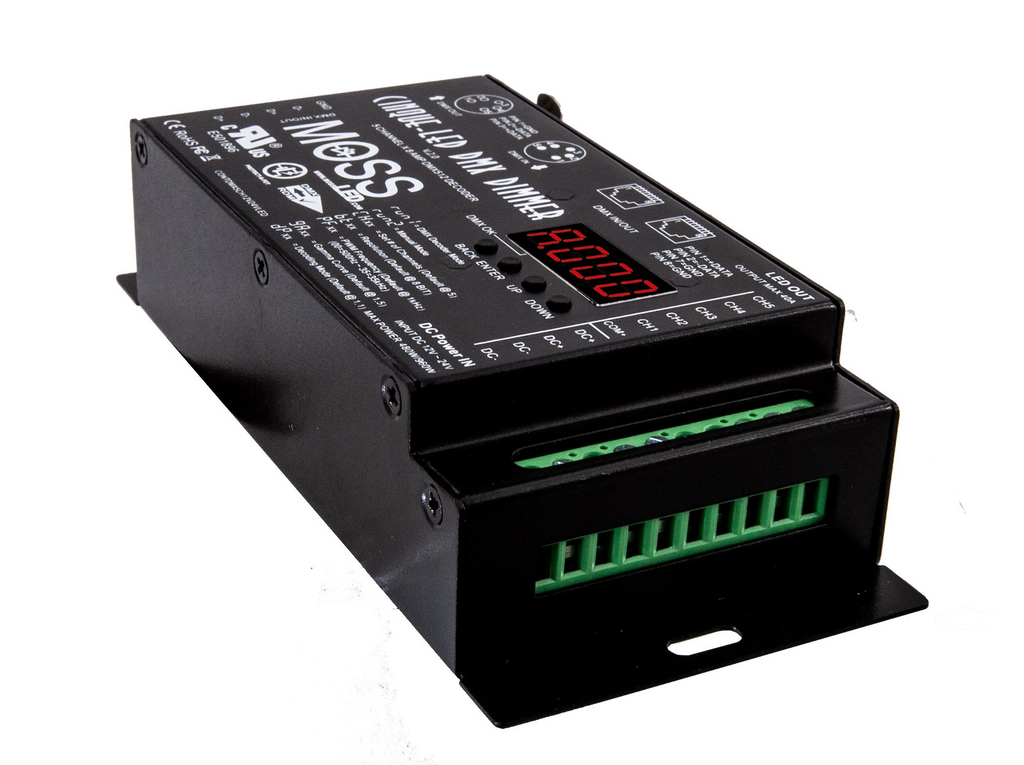

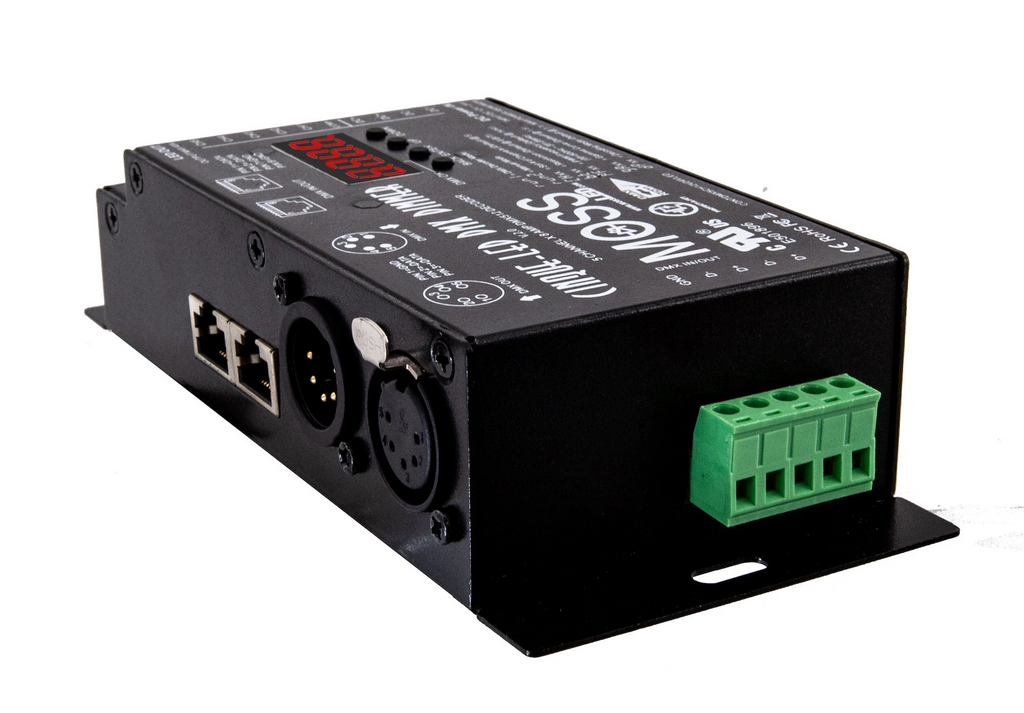

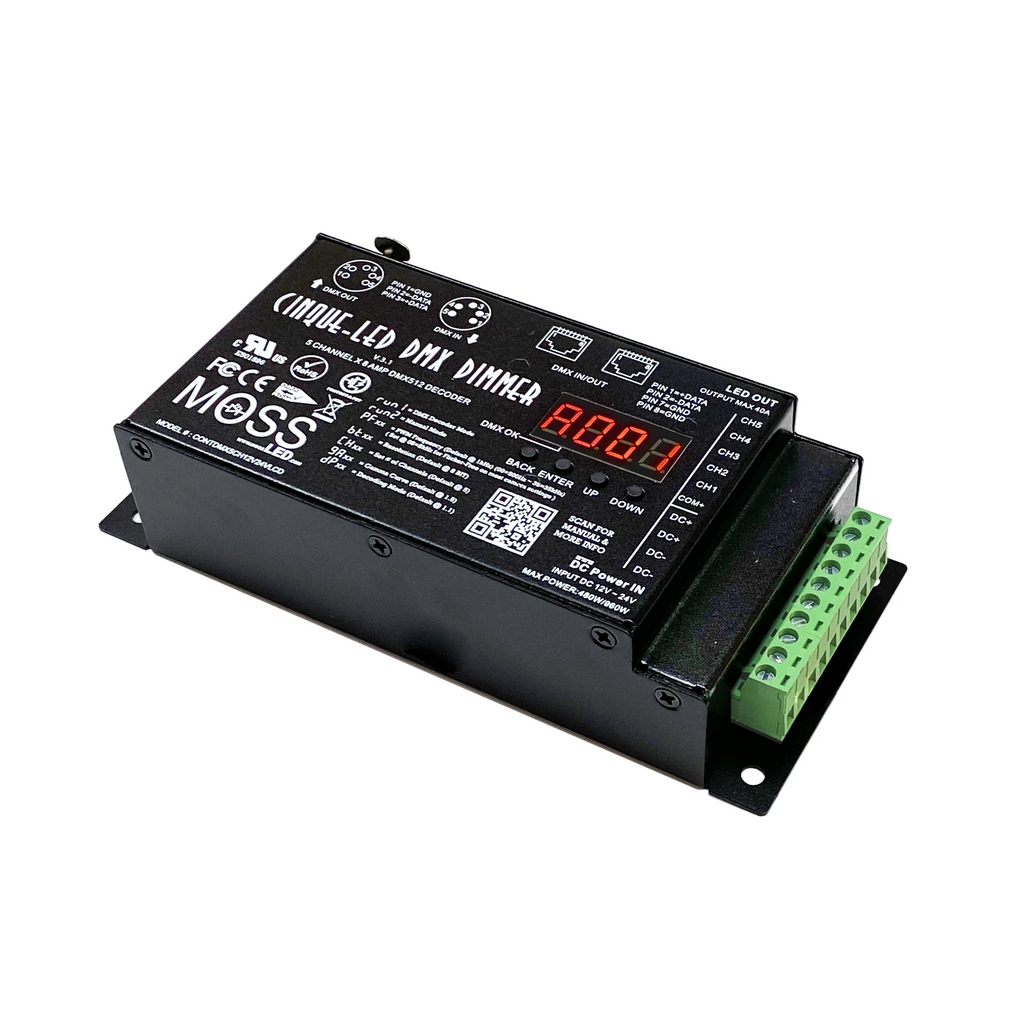

Cinque - 5 Channel LED DMX Dimmer (Constant Voltage)
CONTDMX5CH12V24VLCD
DMX Dimmers
$119.83
This controller can be used with all of our FlexLED Tape products and Modules
- This unit converts DMX-512/1990 standard digital signal into five dimmable channels.
- Uses RJ45 Ethernet or 5-pin XLR connectors?to control LEDs via any lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape
- LED Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
Technical Parameters
- Supply Voltage: 12V - 24V DC
- Output: 5 Channels
- Output Current: 5 CH @ 8A/CH = Max 40A
- Output Power: 480W @ 12V / 960W @ 24V
- PWM Frequency: 500Hz to 30kHz
- Bit Rate: 8 Bit & 16 Bit
- External Dimension (mm): L164*W73*H38
- Gross Weight: 220g
- Working Temperature: -20? to +70?
- IP Rating: IP40
**Connector Tails Not Included**
Technical Parameters
|
Output Current (A) |
: |
5 CH @ 8A/CH = Max 40A |
|
Output Power (W) |
: |
480W @ 12V / 960W @ 24V |
|
Supply Voltage |
: |
12V - 24V DC |
|
Size (inches) |
: |
|
|
Working Temperature |
: |
-20°C to + 70 °C |
|
Weight |
: |
350g |
|
PWM Frequency |
: |
500Hz to 35kHz |
|
IP Rating |
: |
IP40 |
|
Flicker Free |
: |
YES |
|
Bit Rate |
: |
8 Bit & 16 Bit |
**Connector Tails Not Included**
